Robotic arm FiFish for V-EVO Qysea

Robotic arm FiFish for V-EVO Qysea

This accessory fits QYSEA Fifish V-6 drones

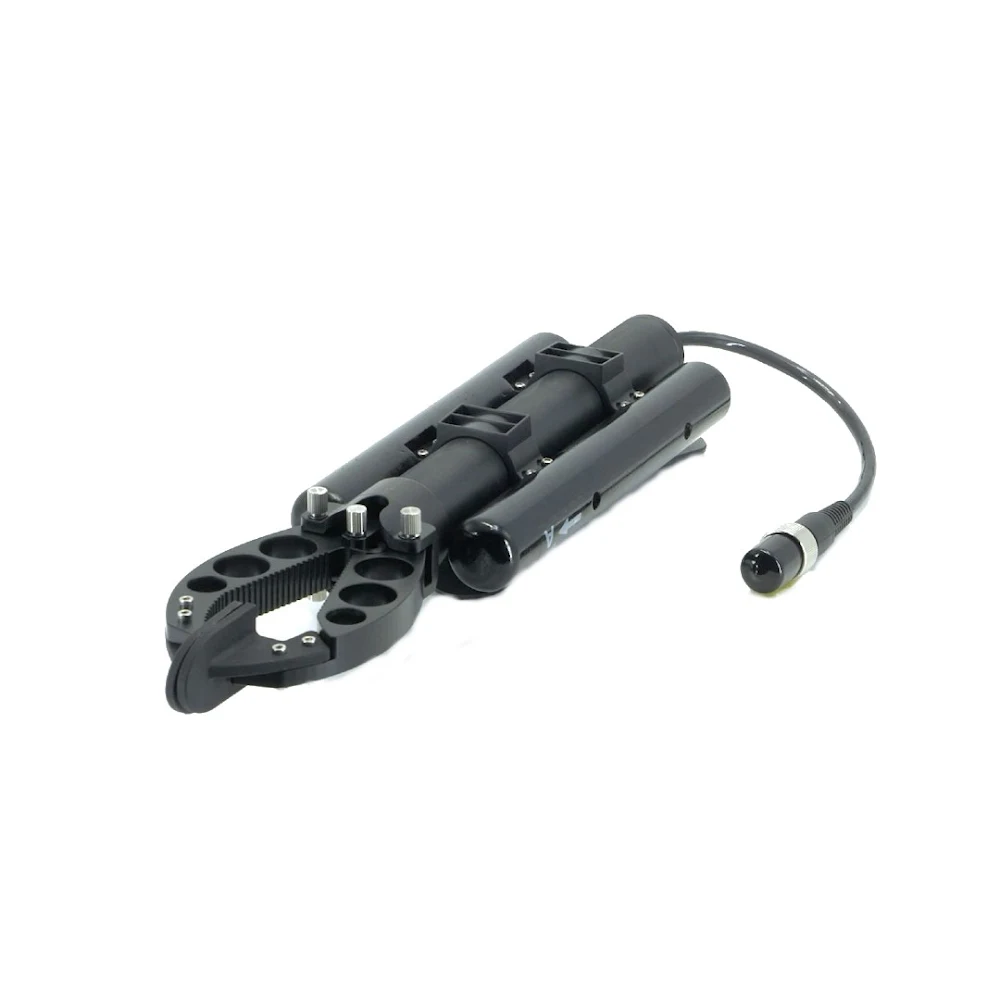

Parallel Gripper

The Parallel Gripper gives the operator the greater ability to retrieve fragile, flat as well as other uniquely shaped objects that may be difficult to grasp. Suitable for a range of underwater adventures and archaeological expeditions, salvage items and treasures with precision and ease.

Compact, Rugged & Functional

The small but powerful robotic arm delivers a clamping and towing force of 100N, is capable of retrieving large and heavy objects and is beneficial across a wide range of applications.

Superior Power & Precision

FIFISH’s robotic arm the operational concepts of compact ROVs. Drag, drop, tow, and salvage objects with the neutrally buoyant robotic arm and rugged tether cable. Operate with stable & precise control, with an optimal viewing zone.

Boost Your Underwater Capabilities

With an additional pair of durable flat grippers, objects of all shapes and sizes -whether flat, curved or angled- can be retrieved and recovered with ease.

Specifications

Depth Rating 100m
Maximum Power Consumption 2A@12V
Input Voltage 9V-13V DC
Maximum Clamping Force 100N
Operation Temperature -10 to 60℃
Maximum Grip Dimension 120mm
Claw Two Fingers
Communication UART
Buoyancy System Neutral Buoyancy
Versions Available 2.0 Port & 4.0 Port
Max Grip Strength 10Kg
