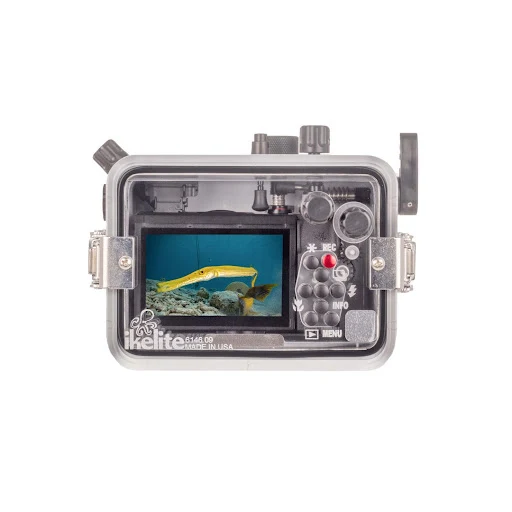

Underwater housing Ikelite for Canon G7X Mark III

Underwater housing Ikelite for Canon G7X Mark III

The Canon PowerShot G7 X Mark III is a great choice for underwater use. The bright 24-100mm zoom lens is ideal for use with external wide angle lenses. A large 1"-type CMOS sensor, 4K UHD video resolution, manual exposure modes, and RAW image capture are key advantages when shooting underwater.

Take full creative control of your camera up to 200 feet

• Controls for all camera functions except Flash pop-up button (flash must be extended when installing the camera in the housing)
• Strobe Connector Fiber Optic Ports
• Lens Port 3" Diameter with 67mm Threads
• Accessory Port 1/2-20 Thread
• Depth Rating 200 feet (60 meters)
• Weight 2.3 lb
• Dimensions 6.9 x 5.5 x 5" (175 x 140 x 127 mm)
• Rear O-Ring 0109



Construction

Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.

Lens support

67mm threaded macro wet lenses attach directly to the front of the housing's lens port for super macro photography. Compatible wet lenses include but are not limited to the INON UCL-165, Subsee Magnifier, Saga close up lenses, Nauticam CMC-1, and others.

The optional WD-3 Wide Angle Dome # 6430.3 provides a wider angle of view underwater without the edge distortion, vignetting, or weight typically associated with an external wide angle wet lens. The WD-3 is a 0.75x magnification factor and simply slides on and off of the housing's lens port.

The W-30 Wide Angle Lens # 6430, INON UWL-H100 Type 1 # 64310, and other 67mm threaded wide angle lenses, provide a wider maximum angle of view. Because these are separated from the camera's lens by glass, air, and water, vignetting (dark clipping of the edges of the image) and edge distortion will be present. These effects can be reduced or eliminated by using a smaller aperture, zooming in slightly, and/or cropping in post-production.

The DC4 6" Dome Port # 6404 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 24mm wide angle and is perfect for split shots (half-in, half-out of the water). Approximately 3/4 of the camera's zoom range is usable behind the dome and macro images can be captured with the dome installed.

We recommend adding the Anti-Reflection Set of Foam # 6407 to reduce reflections when using the DC4 Dome Port.

Wi-Fi transfer

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

Compatibility

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.

In the box

Housing
Rear o-ring # 0109 (installed)
Vinyl port cover # 0200 (installed)
.050" hex key # 0945.11
1/16" hex key # 0945.16
Silicone lubricant 1cc tube
