Underwater housing Ikelite for Canon R5

A full featured and durable underwater housing for Canon EOS R5 full-frame mirrorless digital cameras.

In the box

• Housing
• Accessory Port: M16 Thread
• Rear O-ring # 0132.59 (installed)
• Front O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Tool for Zoom Gear Retainer # 0945.06
• Hex Key
• Silicone Lubricant 1cc Tube

Lens Ports

This underwater housing features our robust Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf. Attachment is quick and secure. A system of extensions can accommodate a huge variety of lenses with ease.

Vacuum System & strobes

The included vacuum valve allows you to pressurize the housing to check for leaks prior to putting your expensive equipment in the water. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge #IK47011, sold separately.

This housings supports your choice of shooting manual strobes or adding TTL electronics depending on your application. The included manual hotshoe with Ikelite ICS-5 bulkhead supports manual strobe exposure with a wide variety of strobes including Ikelite, SEA&SEA, INON, and others.

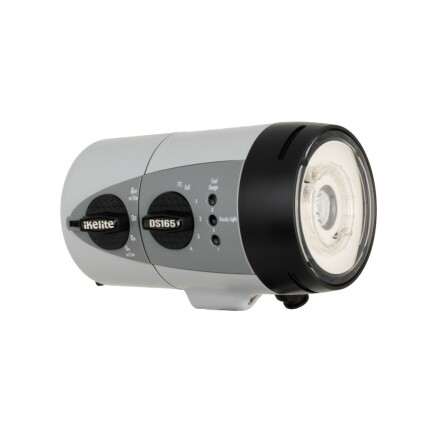

Enjoy the fastest and most accurate strobe exposure on the market by adding the DL5 DS Link Canon TTL Converter and CT1 TTL Hotshoe Kit #IK46075 and a compatible Ikelite DS strobe. The DS Link can be programmed to the camera's specific TTL protocol and supports both first curtain and rear curtain sync up to the camera's maximum flash sync speed. SEA&SEA, INON, and Retra strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Lens port is required

A compatible lens port is required for underwater use (sold separately). Choose the correct port components for the lens you will be shooting.

Ikelite Port charts

Specifications

• 60m depth rating
• Compatible with DL system lens ports
• Accessory Port: M16 Thread
• Controls are provided for all important camera controls;C
• Controls are not provided for Depth of field preview button, Multi-function lock button, Multi-controller (can be pushed in for use as a user programmable button)
• 1/4-20 thread base mounts with 3.5" spacing
• Slightly positive buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• 2123 g without tray and handle
• 220 x 175 x 165 mm
• Vacuum valve included (pump sold separately)
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
