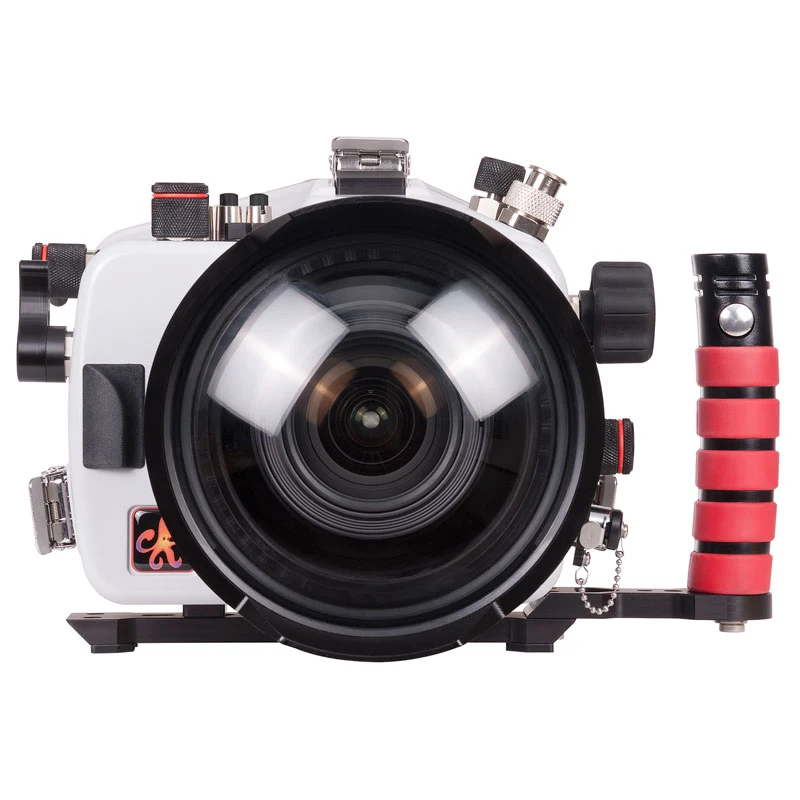

Underwater housing Ikelite for Canon 5D IV, 5D III, 5DS, 5DS R

Ikelite has designed this underwater housing to offer one of the best performance to dollar purchases in the world.

In the box

Rear O-ring # 0132.61 (installed)
Front O-ring # 0132.45 (installed)
Zoom Gear Retainer # 75900 (installed)
Port Hole Cover # 0200.92 (installed)
Waterproof Bulkhead Cap # 9104.7 (installed)
Base with Left-Hand Quick Release Handle # 4077.67 (installed)
Tool for Zoom Gear Retainer # 0945.06
.050" Hex Key # 0945.11
1/16" Hex Key # 0945.16
Silicone Lubricant # 0184.1

The underwater housing

Supremely functional for maximum creative control—access is provided for all important camera functions
The new Dry Lock (DL) Port System gives added security at the surface of the water and accommodates large diameter lenses
Extra-large, soft touch zoom knob; Zoom is accessible for many lenses using our unique universal zoom gear system
Vacuum valve included; Test your system after assembly prior to entering the water; Pump sold separately #IK47011
Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL circuitry provides automatic exposure with compatible Ikelite DS strobes
Control symbols are laser etched into the back and will never fade or rub off
Quick install camera mount plate does not need to be removed for battery or memory card access
One spare 1/2-20 threaded accessory port locations on the front of the housing for the addition of optional accessories
Includes a balanced aluminum base with left-hand quick release handle; Right-hand handle sold separately
Signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel

TTL Exposure

Install optional CT1K Canon TTL Kit #IK46070 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the Canon TTL Kit installed, but will not provide TTL exposure.

Non-Ikelite Strobes

SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.

Fiber Optic

Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

Lens port is required

A compatible lens port is required for underwater use (sold separately). Choose the correct port components for the lens you will be shooting.

Ikelite Port charts

Specifications

60m depth rating
1/4-20 thread base mounts with 3.5" spacing
Near neutral buoyancy in fresh water
Actual buoyancy varies depending on choice of lens and port
Weight 2.3 kg not including tray + handles
Dimensions 234 x 180 x 168 mm including projections
