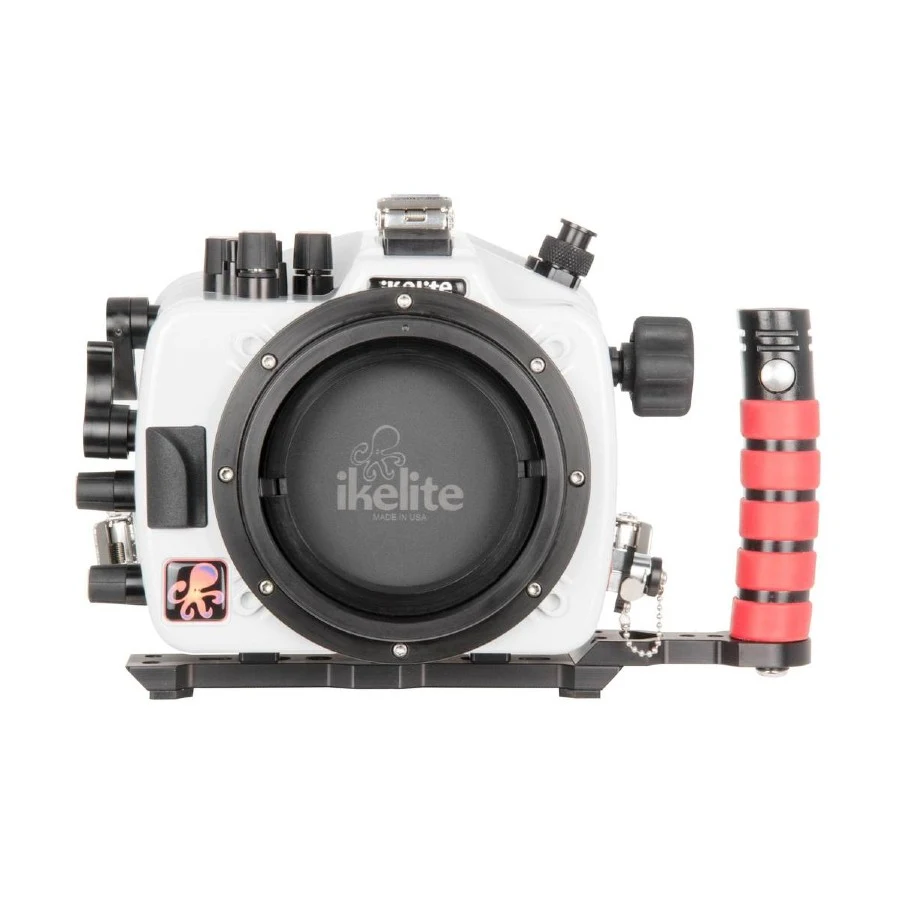

Underwater housing Ikelite for Nikon Z7 II & Z6 II

Ikelite's Z7 II & Z6 II housing are designed from the ground up to provide full camera control

In the Box

1. Housing
2. Rear O-ring # 0132.61 (installed)
3. Front O-ring # 0132.45 (installed)
4. Zoom Gear Retainer # 75900 (installed)
5. Port Hole Cover # 0200.92 (installed)
6. Waterproof Bulkhead Cap # 9104.7 (installed)
7. Base with Left-Hand Quick Release Handle # 4077.67 (installed)
8. Tool for Zoom Gear Retainer # 0945.06
9. .050" Hex Key # 0945.11
10. 1/16" Hex Key # 0945.16
11. Silicone Lubricant # 0184.1

The housing

This housing features our robust Dry Lock (DL) port system. "Dry Lock" refers to the placement of the o-ring on the outside of the port mount. This improves visibility and reduces the chances of water dropping onto your precious camera sensor. DL ports are the lightest on the market, yet robust and capable of standing up to rough surf.
In addition to the series of new Z mount lenses to be released progressively, Nikon shooters can also use their favorite F mount lenses thanks to the new FTZ Adapter.

The included vacuum valve allows you to pressurize the housing to check for leaks prior to putting your expensive equipment in the water. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge #IK47011, sold separately.

TTL Exposure / Strobes

This housings supports your choice of shooting manual strobes or adding TTL electronics depending on your application. The included manual hotshoe with Ikelite ICS-5 bulkhead supports manual strobe exposure with a wide variety of strobes including Ikelite, SEA&SEA, INON, and others. You can enjoy the fastest and most accurate TTL exposure on the market by adding the DL1 DS Link TTL Converter #IK46054 and a compatible Ikelite DS strobe. The DL1 supports rear curtain synchronization and exposure compensation can be added or subtracted in the camera. Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.

In addition to the series of new Z mount lenses to be released progressively, Nikon shooters can also use their favorite F mount lenses thanks to the new FTZ Adapter.

Lens port is required

A compatible lens port is required for underwater use (sold separately). Choose the correct port components for the lens you will be shooting.

Ikelite Port charts

Specifications

• 200' (60m) depth rating
• Compatible with DL system lens ports
• Controls are provided for all important camera controls;
• Controls are not provided for Joystick up/down/left/right, Fn1, Fn2, Diopter adjustment dial, or DOF button
• 1/4-20 thread base mounts with 3.5" spacing
• Slightly positive buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• 4.7 lb (2.15 kg)
• 8.75 x 6.875 x 6.5" (220 x 175 x 165 mm)
• Vacuum valve included (pump sold separately)
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes.
