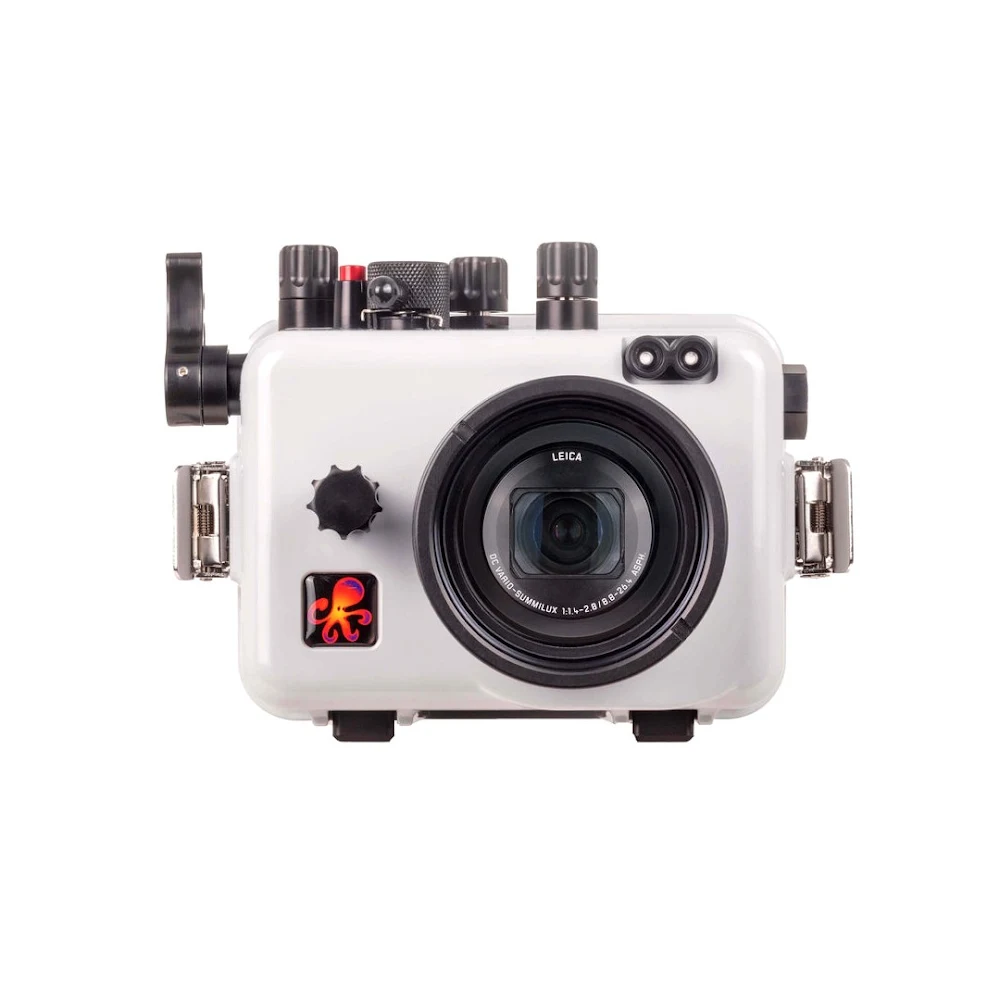

Underwater housing Ikelite for Panasonic LX15, LX10

This compact and lightweight housing provide full operation of the camera up to depths of 60m. Large, easy-to-reach controls are provided for all camera functions including the front and rear dials.

The housing

The shutter lever has been updated to a more sensitive and natural feeling curved design. The standard control hugs the side of the housing for comfortable use when hand holding. It can be easily extended using the optional Shutter Trigger Extension # 4077.93 to put it within easy reach when using a right-hand quick release handle. The push buttons have been redesigned to reduce weight and salt build-up for smooth operation with minimal maintenance. The back of the housing features laser engraved control symbols which will never fade or fall off.

The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing.

Vacuum system

A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A vacuum kit allows you to pressurize the housing to check for proper assembly prior to entering the water.

Strobes

The built-in flash may be used to trigger external strobes via fiber optic sync cord. Two ports are provided for the connection of up to two fiber optic cords.

Wet lenses Macro & Wide

Our 3-inch diameter ports feature a 67mm thread on the front for the easy attachment of external wide angle and macro wet lenses.

Specifications

60m depth rating
Controls for all camera functions except Flash open lever; flash must be opened prior to installation of camera in housing
Slightly negative buoyancy in fresh water
1/4-20 thread tray mounting with 3 in (76mm) spacing
Weight 1180 g
Dimensions 135 x 130 x 175 mm
3.0-inch diameter glass lens port
