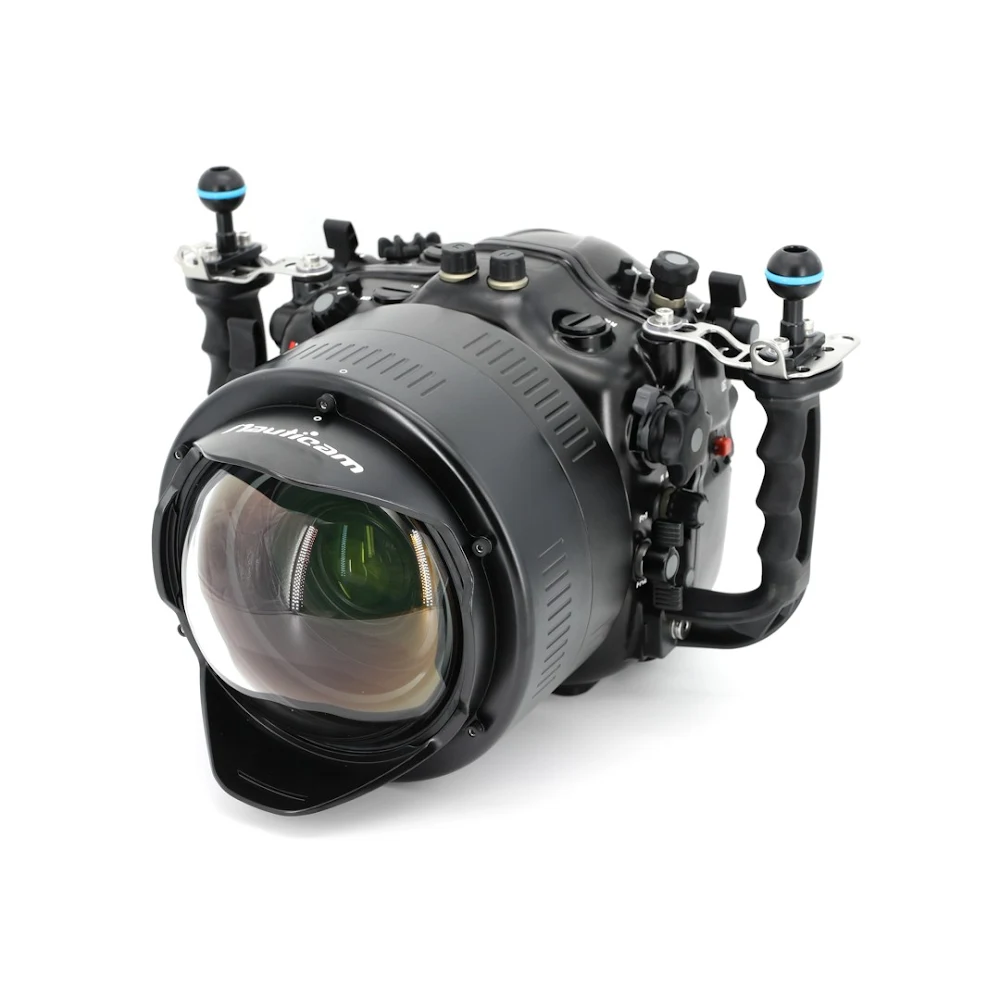

Lens Wide Nauticam WACP-1 (N120) (Demo unit)

The WACP-1 is optimized to work with 28 mm lenses to produce an unparalleled 130 degree field-of-view while maintaining full zoom-through optical capability and 0.36x magnification. OBSERVE this is a Demo port in mint condition but open box.
36 950 SEK
Part no: 85201

Description

Lens Wide Nauticam WACP-1 (N120)

WACP-1 N120 0.36x Wide Angle Conversion Port with Integrated float collar.

OBSERVE this is a Demo port in mint condition but open box. Also note that it is the discontinued model #85201 with a different design of the float collar and fixed N120 mount size.

The WACP-1 is a 0.36x Wide Angle Conversion Port. Unlike traditional ports or wet-mate corrective wide-angle optics, the WACP-1 is a "dry" corrective optic that modifies a 28mm equivalent lens to an extremely sharp 130º. Not only is the newer WACP-1 smaller and lighter, but it now integrates a built in buoyancy collar and offers a user port mount N120.

Technical specifications

Depth Rating 150m
Weight (in air) 3.70 kg
Weight (in water) Negative 0.01kg
Body Construction Hard-anodized Aluminum Alloy
Lens Construction 6 Elements in 5 Groups
Lens Coating Anti-reflective on both sides
Mount System N120 Mount

Compatibility - Nauticam users

Check which port and lens are compatible through Nauticam's dedicated port chart or charts (sold separately).
Click the link below to find recommended configurations and accessories.

Nauticam port charts

Compatibility - Other users

The lens has a bayonet mount. There are no compatibility chart for other brands, and fitting is up to the users judgement.

Introducing WACP-1 N120 0.36x Wide Angle Conversion Port with Integrated float collar.

Focus

The WACP can focus from its front element to infinity in-water allowing for extremely close-focus wide angle shooting. When used with certain zoom lenses, the WACP can provide a variety of field-of-view options.

Buoyancy Collar

An aluminum float collar is integrated into the WACP-1B and brings the in-water buoyancy 0.01kg negative.

Compatible Lenses

The WACP is designed to function at the full-frame equivalent focal length of 28mm. A wide variety of lenses are supported, both primes and zooms for Nikon, Canon and Sony as well as Super35 Cinema Systems. Please check the PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.

Resources

In the box

Front Hard Cap
N120 Bayonet Adaptor
Rear Port Cap (N120)
Carrying Bag

Instruction manual
