Underwater Monitor housing Nauticam for Atomos Ninja V & V+ (SDI/HDMI)

The Nauticam NA-Ninja V allows for the connection of the Ninja V & V+ over SDI or HDMI and provides easy access to the Ninja V controls underwater.

What's In The Box?

• NA-Ninja V-S Housing
• Monitor Hood
• M16 Vacuum Valve (pre-installed) PN 25625
• M16 SDI Bulkhead (pre-installed) PN25058
• M28 to M16 Step Down Adapter (pre-installed) PN25080
• Internal SDI Cable PN25060
• M28 HDMI 2.0 Adapter (pre-installed) PN25089

• Spare silicone rubber main o-ring PN 90137
• O-ring removal tool and lubricant
• CR2032 battery

The Ninja V-S UW-housing

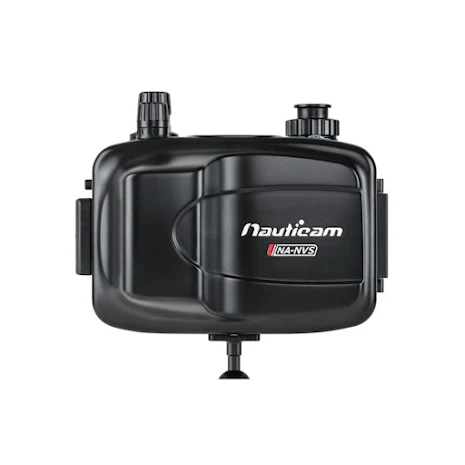

The Nauticam NA-Ninja V-S builds on the strong foundation Nauticam has built with previous Atomos monitor/recorder housings but is built around the new M28 large-bore bulkhead. The M28 on the 'S' housing supports both HDMI 2.0 and SDI via the AtomX SDI Module. The module allows for an SDI connection to the monitor or for providing HDMI-SDI cross conversion. The Ninja V-S is easily mounted in the housing, dropping in without trays or other mounting accessories and is held in place by two rotating locking levers. The Ninja V with the AtomX SDI Module features both HDMI 2.0 and SDI inputs as well as an HDMI or SDI output and the NA-Ninja V-S supports both. With dual M28 bulkheads, a second HDMI or SDI cable can be run to another monitor.

The NA-Ninja V-S supports up to the NP-F970 size battery which provides up to two hours of run time. A CR-2032 battery powers the vacuum check and leak detection system. When used with the included Vacuum Valve, the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.

Access to the touchscreen controls of the Ninja V-S are handled via a series of buttons and a selector knob beneath the screen of the housing including PLAY, REC, MON, RGB, PEAK and the Muti-Selector Lever.

The monitor/recorder
The Atomos Ninja V-S is an exceptional monitor, featuring a bright 1000 nit 10-but HDR 5.2" screen that can display over 10 stops of dynamic range with compatible cameras. The monitor includes a variety of exposure and focus assist tools to insure your footage is properly exposed with critical focus. In addition to being an extremely capable monitor, the Ninja V is also a recorder. When used with compatible cameras over HDMI 2.0, the Ninja V-S can record 4K at 60p in 10-bit 4:2:2 ProRes or DNxHR formats to Atomos AtomX SSDmini solid state drives. With a 1TB SSDmini drive, the Ninja V can record up to 150 minutes of 4K video.

Recommended Accessories:

25077 HDMI 2.0 Cable for NA-XT3 Housing
25078 HDMI 2.0 Cable for NA-BMPCCII/S1R Housing
25079 HDMI 2.0 Cable for NA-GH5V Housing
25082 HDMI 1.4 Cable for HDMI Bulkhead
