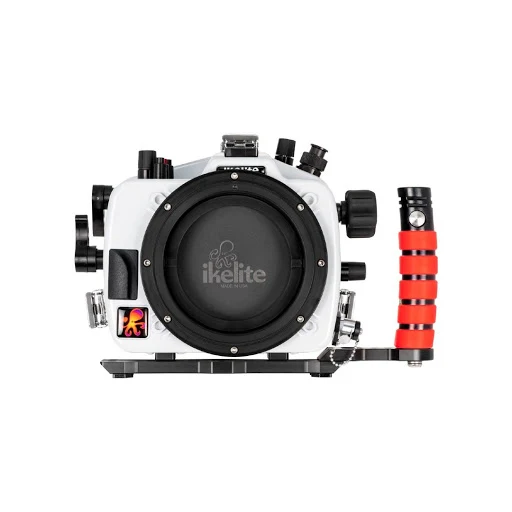

Underwater housing Ikelite for Canon R6 Mark II, R6

A full featured and durable waterproof housing for Canon EOS R6 MKII & R6 full-frame mirrorless digital cameras.

In the Box

1. Housing
2. Rear O-ring # 0132.59 (installed)
3. Front O-ring # 0132.45 (installed)
4. Zoom Gear Retainer # 75900 (installed)
5. Port Hole Cover # 0200.92 (installed)
6. Waterproof Bulkhead Cap # 9104.7 (installed)
7. Base with Left-Hand Quick Release Handle # 4077.67 (installed)
8. Tool for Zoom Gear Retainer # 0945.06
9. .050" Hex Key # 0945.11
10. Silicone Lubricant 1cc Tube

Ikelite housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure, enhanced magnifying viewfinders, and HDMI 2.0 support are available as needed. The DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for our housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.

Vacuum system & strobes

The included vacuum valve allows you to pressurize the housing to check for leaks prior to putting your expensive equipment in the water. Use of the vacuum valve requires a compatible Vacuum Pump with Gauge #IK47011, sold separately.

This housings supports your choice of shooting manual strobes or adding TTL electronics depending on your application. The included manual hotshoe with Ikelite ICS-5 bulkhead supports manual strobe exposure with a wide variety of strobes including Ikelite, SEA&SEA, INON, and others. Enjoy the fastest and most accurate strobe exposure on the market by adding the DL5 DS Link Canon TTL Converter and CT1 TTL Hotshoe Kit #IK46075 and a compatible Ikelite DS strobe. The DS Link can be programmed to the camera's specific TTL protocol and supports both first curtain and rear curtain sync up to the camera's maximum flash sync speed

M16 & M24 Accessory Port

The spare M16 threaded accessory port provides an attachment point for third party accessories including HDMI bulkheads. An optional M24 port can be installed when placing your order.

Lens port is required

A compatible lens port is required for underwater use (sold separately). Choose the correct port components for the lens you will be shooting.

Ikelite Port charts

Specifications

• 60m depth rating
• Compatible with DL system lens ports
• Controls are provided for all important camera controls;
• Controls are not provided for Depth of field preview button, Multi-function lock button, Multi-controller (can be pushed in for use as a user programmable button)
• 1/4-20 thread base mounts with 3.5" spacing
• Slightly positive buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port.
• 2123 g without tray and handle
• 220 x 175 x 165 mm
• Vacuum valve included (pump sold separately)
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL accessories provides automatic exposure with compatible Ikelite DS strobes
• ABS-PC construction is fundamentally corrosion-resistant
• Made in the USA; Individually inspected for fit and water pressure tested to depth
• 2 year limited warranty
