Underwater housing NA-S1RII Nauticam for Panasonic S1R II

Underwater housing NA-S1RII Nauticam for Panasonic S1R II

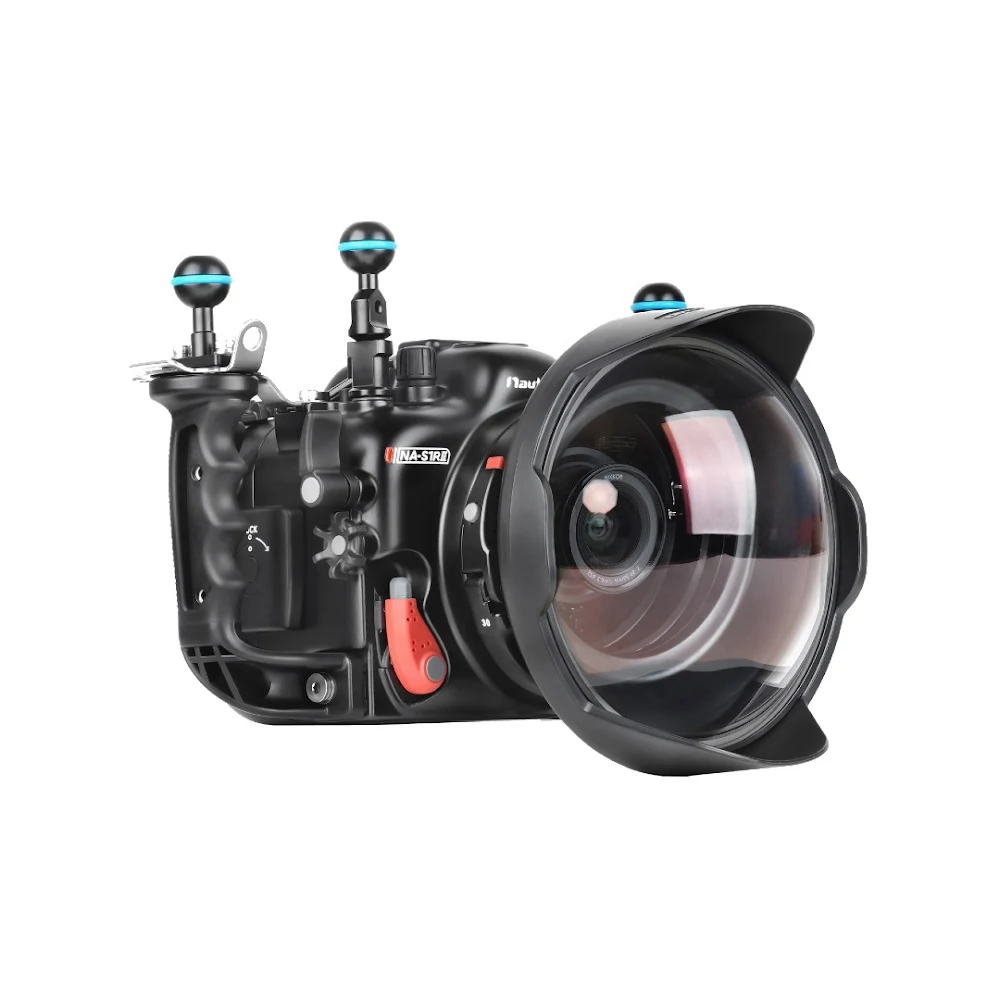

Introducing the Nauticam NA-S1RII underwater housing, a robust and ergonomic solution designed to accommodate the Panasonic Lumix S1R II for underwater photography and videography. This housing provides unfettered access to all camera controls and functions, enabling users to fully utilize the camera's capabilities while diving. Its durable construction and user-friendly features make it an ideal choice for underwater storytellers seeking a dependable and efficient underwater housing option.

Technical Specifications

• Dimensions: 330 mm x 200 mm x 165 mm (W x H x D)
• Weight in air: 2.25kg
• Buoyance in water: Positive 0.5kg (Includes camera and battery)
• Depth Rating: 100m
• Port opening: N120
• Port Chart: N120 Panasonic L-Mount
• Compatible camera: Panasonic Lumix S1R II
• Compatible lenses: L mount lenses, EF mount lenses with Sigma MC-21 Lens adaptor
• Flash Trigger: Manual flash trigger: #26305 Mini flash trigger for Panasonic/Fujifilm
       UNSUPPORT Panasonic Flash DMW FL-70

Accessory ports
Front: 1x M24 and 1 x M16, 1x M10 threaded hole, 8x 1/4’-20 threaded holes
Rear: 1x M16

• Vacuum valve: 25625 M16 Vacuum Valve II (Optional)
• Handles and stabilizing brackets: Pre-installed
• HDMI support: HDMI 2.0/1.4

Introducing NA-S1RII

The Nauticam NA-S1RII underwater housing

Nauticam’s tagline is “Innovation Underwater”, and the company is dedicated to following through with that promise in the industry, while helping to protect customer investments in existing Nauticam gear whenever possible. The NA-S1RII is a prime example as this underwater housing is designed to work flawlessly with the Panasonic Lumix S1RII. This NA-S1RII allows completely unrestricted access to all of the camera's controls, positioning critical controls like AF-ON directly at the photographer's finger tips.

The NA-S1RII underwater housing features the rotary housing lock which is now standard on their more compact line of mirrorless camera housings. With this feature, you can easily open and close the housing with one hand.




Lens ports & wet lenses

When you know what lens you want to use then you check Nauticam's updated port charts to find the recommended lens port or wet lens solution (sold separately).

There are different port charts depending on your underwater housing's port size (N120, N100, N85 or N50), and which camera brand. You will probably find more than one port combination, or wetlens solution.

If you want our expertise to support when you choose we are here to help, contact us. Reminder - Add a manual zoom gear or focus gear if you need that (also stated in the port chart.

Mission Control

Nauticam engineers are obsessed with usability and the Mission Control philosophy means placing essential controls where they are needed, unrestricted by where they are located on the camera body. Placing the controls as close to the handles as possible and within easy and natural reach, the user can focus on composition and timing their shot while adjusting exposure or focus without taking their eye off the EVF or LCD.

The NA-S1RII has a thumb lever on the right rear side of the housing that comfortably accesses AF-On without ever letting go of the handle. An additional lever on the rear of the NA-S1RII allows for focus mode switching between C/S/MF, while a multi-directional pad gives the ability to navigate the menu or move the focus points.

EF and L Lens Support

Sigma's MC-21 EF to L adapter allows for the use of Canon and Sigma EF-mount lenses to be used with the NA-S1RII camera. The NA-S1RII housing is designed to not only accommodate the adapter but to allow for the use of the existing focus and zoom gears for Canon EF-mount lenses for the N120 Canon System along with the existing Canon N120 extension ring and port combinations for those lenses. As more native L-mount lenses become available, those best suited to underwater use will be added to the system. For full compatibility, you can refer to the port chart found here.

Flash Triggering

For rapid-fire manual flash triggering, the NA-S1RII is compatible with the Mini Flash Trigger (26305) which uses small LEDs to trigger external flashes via Nauticam Universal Fiber Optic Cables (26216).

The Panasonic DMW-FL70 flash is not supported within the housing.

Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection electronics are shipped with the NA-S1RII as standard equipment. Combined with an optional accessory M14 vacuum valve (25624) this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

What's in the box

• NA-S1R II Housing
• 90137 Spare main O-ring, o-ring remover and lubricant
• 2x Plugs for Optical fiber cable mount
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)
• Set of Allen Keys
• Padded housing bag and shoulder strap

PDF Instruction Manual Download

Optional Accessories

• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
• 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
• 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
• 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
• *32212 and 32214 are the preferred viewfinders
• 26305 Mini Flash Trigger for Panasonic/Fuji/Canon
• 26216 Universal Optical Fiber Cable
• 90137 Housing O-ring (I.D.=170mm, C.S.=2.5mm)
• 25081 M24-M16 Step Down Adaptor
• 25097 M24-M14 Step Down Adaptor
• 25019 M16 to M14 step down adaptor for electrical bulkhead

Mounting Accessories

• 25221 M10 strobe mounting ball for housing
• 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
• 17959 Housing Mounting ball with 1/4'' screws
• 17960 Universal Quadra-Pod Plate for Nauticam Housings
• 25218 Mounting ball set for tripod
• HDMI Recommended Configurations

Surface USB-PD power bank

• 26325 USB-C Bulkhead with USB-C Connector *Can be installed on either M24 or M16.
• 26326 M24-M16 Adaptor for use with 26325 *for use with M24 only.

For HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 Cable
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1/NA-S5II to use with Ninja V housing)
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)

For HDMI 1.4 Cable System

• 25033 Standard HDMI Cable with M16 Thread
• 25081 M24-M16 Step Down Adaptor
• 25100 HDMI (D-A) cable in 190mm length for NA-a1/NA-S5II
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor withHDMI 1.4 input
• 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor

Wet lenses

• 81202 Super Macro Convertor 2 (4x Magnification)
• 81203 Super Macro Convertor 3 (2.3x Magnification)
• 81501 Mid-range Focus Optimizer 1
• 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
• 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
• 85204 0.57x Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible14mm Lenses (incl. float collar)
• 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
• 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
• 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
• 86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens
• 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
• 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
• 87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
• 87211 EMWL 150mm Relay Lens
• 87212 EMWL Angled Relay Lens
• 87221 EMWL 60° Objective Lens
• 87222 EMWL 100° Objective Lens
• 87223 EMWL 130° Objective Lens
• 87226 EMWL 160° Objective Lens

Optional accessories for using with wet lenses

• 25101 M67 flip diopter holder for M67 macro ports
• 25108 M67 Double Flip Holder for M67 Macro Ports
• 83213 M67 to Bayonet Mount Converter II
• 83214 Bayonet Mount Adaptor for SMC/CMC
• 83250 M67 to Bayonet Mount Converter II
• 83251 M77 to Bayonet Mount Converter II
• 87501 Flip Holder for EMWL
• 87512 Shade for 130° Objective Lens
• 87513 Shade for 100° Objective Lens
• 87519 Shade for 160° Objective Lens
• 87518 Strobe Mounting Brackets for EMWL Relay Lens
