Underwater housing NA-ZR Nauticam Nikon ZR

Underwater housing NA-ZR Nauticam Nikon ZR

Nauticam are designing a new housing for the Nikon ZR camera and it will soon be released.
You are welcome to place an open order for the housing with no purchase commitment.

You will be first in line and receive the housing as soon as it is available.
There will be more information posted when it is realeased from Nauticam.

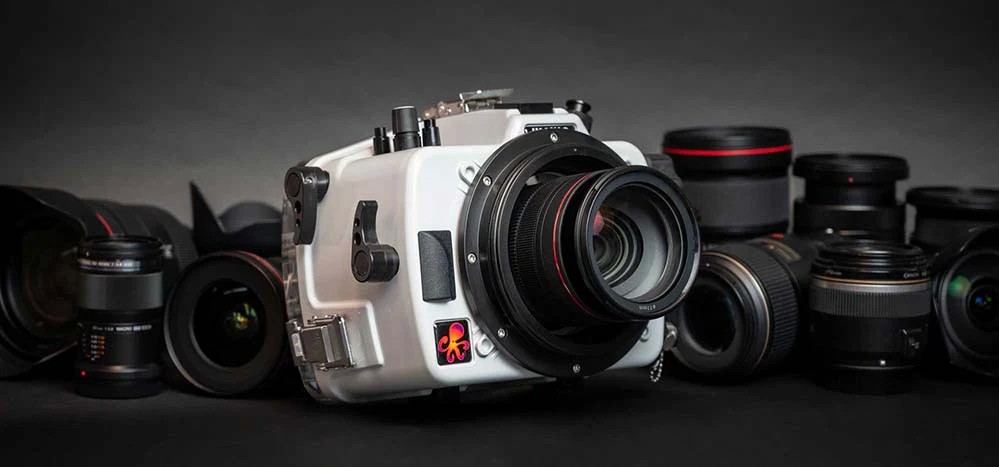

Dedicated Port chart for the NA-ZR

When you know what lens you want to use then you check Nauticam's dedicated port chart to find the recommended lens port or wet lens solution (sold separately).

Main housing features

• N120 Port Lock II*
• MIL handles with Rotary Housing Lock.
• + & - Lever, Fn3/DISP Lever are routed to close the right side handle
• Lens REL Lever
• Integrated Vacuum Check and Leak Detection System
• 1/4-20 thread holes on the top
• Support Z mount lenses only with new N120 Gear System III for Nikon Z Mount (41)

*support to install Extension/Port and lock automatically when the red port lock lever is closed

Preliminary specifications

• Dimensions: 338mm(W)x 200m(H) x 125mm(D)
• Weight in air: TBA
• Buoyance in water: TBA (includes camera and battery)
• Depth Rating: 100m
• Port mount: N120
• Accessory ports: Front: 1x M24, 1x M16, 1x M10 threaded hole. Rear: 1x M16
• Vacuum valve (optional): 25625 M16 vacuum valve II
• Handle and stabilizing brackets: Pre-installed
• HDMI support: HDMI 2.0/1.4C
• Compatible cameras: Nikon ZR Camera

What’s in the box:

• NA- ZR Housing
• 2x handles with mounting balls and handle brackets
• Housing Cap
• 2x plugs for Optical fiber cable mount
• Panasonic CR-2032 Battery (pre-installed for moisture alarm)
• Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keysc
• Padded housing bag and shoulder strap

Housing O-rings:
90136 Housing O-ring (I.D.=155mm, C.S.=2.5mm)

Port system:
N120 PORT SYSTEM FOR NIKON ZR

Port Adaptors
22225 N120 FTZ Adaptor ER 25 with Knob *for focus control

Compatible Gears
19231 Z105-FII for Nikkor Z MC 105mm F/2.8 VR S
19232 Z2450-ZII Zoom Gear for Nikkor Z 24-50mm f/4-6.3
19233 Z2850-ZII Zoom Gear for NIKKOR Z 24-50mm f/4-6.3 with 28-50mm Limitor Ring
19234 Z1424-ZII Zoom Gear for Nikkor Z 14-24mm f/2.8 S
19235 Z1430-ZII Zoom Gear for Nikkor 14-30mm f4 S
19236 Z2470II-ZII Zoom Gear for Nikkor Z 24-70mm f2.8 S II
19237 ZS2860-Z Zoom Gear for Sony FE 28-60 F4-5.6 (withMegadap ETZ 21 Pro+)

Flash Triggering:

Optical Trigger
xxxxx Mini Flash Trigger for NA-ZR

Electrical Triggering
25013 M14 Nikonos 5-pin bulkhead with hotshoe connection

Recommended Accessories:

Housing Mount
25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
25221 M10 strobe mounting ball for housing
25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
25228 M5 strobe mounting ball for housing

Vacuum Valve
25625 M16 Vacuum Valve II (Pushbutton Release)

Lanyard
25413 27cm lanyard with 2 snap hooks

Surface USB-PD Power bank
26325 USB-C Bulkhead with USB-C ConnecCtor
(not support to use with HDMI OUT together)

Housing Shade
xxxxx LCD window shade for NA-ZR

HDMI OUTPUT:

Required accessories for HDMI 2.0 Cable System

25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing (TBA)

Monitor housing Options:
17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

25033 Standard HDMI bulkhead with M16 thread
26326 M24-M16 Adaptor for use with 26325
25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400
(for internal connection from HDMI bulkhead to camera)

Monitor housing Options:
16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
*25047 is Required for use with 16611/16612.

17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
*17927 includes 25033,25038,25100.

17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
*25082 is Required for use with 17922 monitor housing

Monitor Mounting system
17951 Nauticam Atomos Shogun housing mounting system
17952 Nauticam Monitor Housing Mounting Adaptor
17954 Tripod plate for NA-A7S and NA-GH4
17960 Universal Quadra-Pod Plate for Nauticam Housings
17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)

Wet Lenses:

Macro
81202 Super Macro Convertor 2 (4x Magnification)
81203 Super Macro Convertor 3 (2.3x Magnification)
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
81501 Mid-range Focus Optimizer 1
81503 Mid-range Focus Optimizer 3

Wideangle
83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
Interchangeable Port Mounting Ring - (WACP-1B)
85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg.
FOV with Compatible 28mm Lenses
