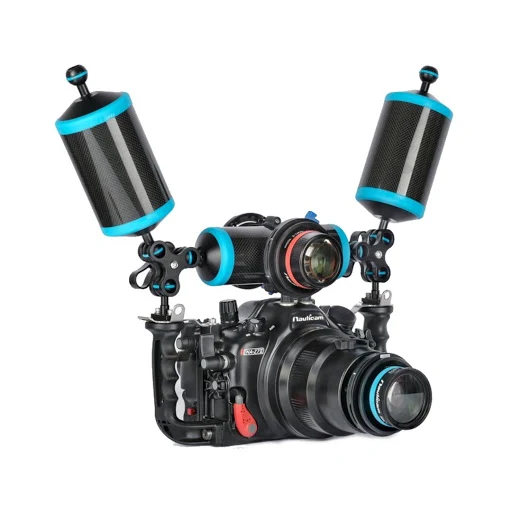

Underwater housing Nauticam for Nikon Z7 II, Z6 II

Nauticam UW housing for the mirrorless Nikon Z7 II - Z6 II camera.

This exclusive Nauticam housing include a manual LED Flash Trigger (#26350) pre-installed.

In the box

1. Nauticam NA-Z7II Housing
2. 90122 Housing O-ring, lubricant and removal tool
3. CR2032 Battery (for vacuum system)
4. Padded Travel Case
5. Allen Wrench Set

The housing
Both the Nikon Z 6II and Z 7II present shooters with the ability to use both the available legacy F Mount lenses via the FTZ adapter in addition to their native Z Mount optics. To support both the legacy and native lenses, Nauticam has integrated the NA-Z7II into the N120 port system. This is critical as the new Z mount lenses are being phased in over the next few years. The Nauticam NA-Z7II housing features two lens release buttons that correspond to either F or Z mount lenses.

Regardless of where the control is located on the camera, the Nauticam housing puts them where you need them to be underwater. For those switching between photo and video modes, an easily reachable switch is located on the right rear of the housing. The left double thumb lever accesses the DISP and Playback controls. The switch that allows for switching between the LCD display and the EVF, a crucial and much used control with mirrorless systems is located close to the left handle.

The Nauticam vacuum check and leak detection system is shipped with NA-Z7II as standard equipment. Combined with an accessory M16 vacuum valve (25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing

Strobes

The NA-Z7II comes with Nauticam's self powered manual flash trigger preinstalled. The flash trigger plugs into the hot-shoe of the camera and uses LED lights recessed into each of the two optical bulkheads to trigger supported underwater flashes when used with the correct fiber optic connection. The flash trigger is powered by coin cell batteries that provide thousands of flashes per battery. The flash trigger can be upgraded to support TTL triggering (26308 TTL Converter for Nikon).

Premium optics

The Nauticam NA-Z7II uses the same N120 Port System as the previous NA-Z7 which makes for a seamless transition for those upgrading to the "II." While this system provides exceptional optical-glass and flat port solutions for a wide variety of F and Z Mount lenses, the real power of the Z 6II and Z 7II can be realized using Nauticam's Water Contact Optics.

Lens port is required

A compatible lens port is required for underwater use (sold separately). Choose the correct port components for the lens you will be shooting.

• Nauticam Port charts

Specifications

• Dimensions 360mm(W) x 200mm(H) x 160mm(D)
• Weight In Air 3.1kg
• Weight In Water -0.07kg (with camera and battery)
• Depth Rating 100m
• Port System N120
