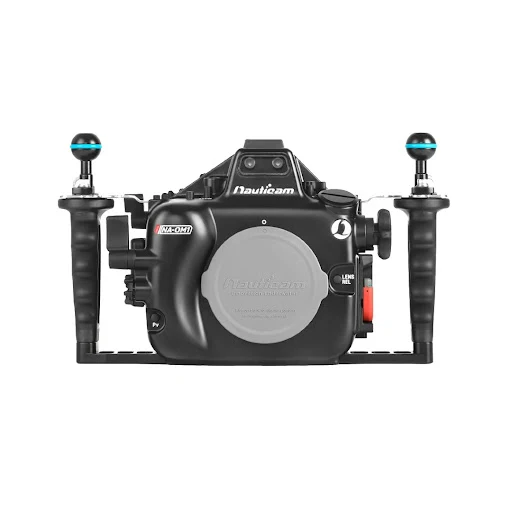

Underwater housing NA-OM1 Nauticam for OM System OM-1 and OM-1 MKII

Underwater housing NA-OM1 Nauticam for OM System OM-1 and OM-1 MKII

This housing is fully compatible with the OM System OM-1 Mark II Camera.

The OM System's OM-1 is the first high-end Micro Four Thirds mirrorless camera from OM Digital Solutions which purchased the Olympus camera division. The OM-1 features a 20MP quad-pixel AF stacked CMOS sensor. It is paired with the latest TruePic X processor to deliver 3x faster processing speeds and is capable of 120 fps shooting with the electronic shutter. The O-M1 can also capture 4K UHD or DCI at 60p in the OM-Log profile with 10-bit color and maximum dynamic range for post production.

Technical Specifications

• Dimensions 307mm(W) x 179mm(H) x 118mm(D)
• Weight in Air 2.0 kg
• Weight in Water -0.2 kg (with camera and battery)
• Depth Rating 100m
• Port Mount N85

Introducing NA-OM1

The OM Systems OM-1

Reviving the 'OM' moniker on it's 50th anniversary, OM System is releasing the OM-1 Micro Four Thirds camera aimed at the "on-the-go pro". The OM-1 features a new stacked CMOS 20MP sensor. The stacked design offers faster readout speeds and improved autofocus capabilities over previous BSI sensors. Billed as a true hybrid-shooter the OM-1 can capture up to 10-bit DCI or UHD aspect ratio 4K video at up to 60p and HD at 240fps. Over HDMI, the OM-1's output can be recorded as ProRes RAW on the Ninja V and Ninja V+ recorders from Atomos.

Key Camera Specs

• 20MP Stacked CMOS Sensor
• 1053 X-type AF points
• Up to 120 fps with electronic shutter
• Image stabilization rated to 7EV of correction (up to 8EV with compatible lenses)
• Large 5.76M-dot OLED electronic viewfinder
• Dual UHS-II SD card slots
• UHD or DCI 4K/60p video, 1080 up to 240 fps
• Weather sealing rated to IP53

Nauticam NA-OM1 Underwater Housing

The OM Systems OM-1 is characterized by its combination of extreme customizability and impressive stabilization in a compact hybrid-shooting package. The Nauticam NA-OM1, similar to the OM-1 is a refinement of it's predecessors. Nauticam has produced housings for a wide range of Micro Four Thirds offerings from both Olympus and Panasonic.

Throughout the evolution of Micro Four Thirds cameras, Nauticam has adapted our design to help image makers take full advantage of every camera advancement. More than a simple waterproof case, the NA-OM1 integrates with the OM-1 to adapt and improve upon the camera's features for underwater shooting.




Lens ports & wet lenses

When you know what lens you want to use then you check Nauticam's updated port charts to find the recommended lens port or wet lens solution (sold separately).

There are different port charts depending on your underwater housing's port size (N120, N100, N85 or N50), and which camera brand. You will probably find more than one port combination, or wetlens solution.

If you want our expertise to support when you choose we are here to help, contact us. Reminder - Add a manual zoom gear or focus gear if you need that (also stated in the port chart.

Mission Control

Regardless of where a dial or button may be found on the camera body, Nauticam engineers make sure it is located where it is needed most on the housing. This Mission Control philosophy drives the design of every housing and provides for the most intuitive and easy to use housings available. The NA-OM1 features a thumb lever, easily accessed from the ergonomic rubberized right handle that actuates the AF-ON control with a dedicated red record button close by. This back-button autofocus method prevents the camera from refocusing between shots, allowing the user fine control over a shot's focus and is critical whether shooting macro or fast moving wide-angle subjects.

Flash Triggering

The OM-1 can be used with the optional Olympus FL-LM3 flash inside the NA-OM1 to provide accurate TTL flash triggering through the integrated Sea&Sea style fiber optic bulkheads. For high-speed manual flash triggering, the optional Mini Flash Trigger for Olympus (26306) can be used. The trigger is powered by onboard coin-style lithium batteries, with thousands of flashes available from a set. Electrical triggering of legacy wired strobe systems is possible via an electrical Nikonos style bulkhead (optional).

Premium Professional Optics

A camera system is only as good as the optics placed in front of it. Nauticam's extensive line of dome and flat ports support a wide variety of Micro Four Thirds lenses. For even higher image quality and versatility, the NA-OM1 can be used in conjunction with Nauticam's lineup of Water Contact Optics. For example, with the Olympus 14-42mm f/3.5-5.6 EZ Lens, the Nauticam WWL-1 provides a full zoom through ultra wide-angle 130º field of view.

Magnifying Viewfinders

A clear view for fine focus and composition is critical for successful underwater photography, and nothing beats a magnifying viewfinder. These viewfinders use distance, not closeup vision, and provide a large, clear view of the high resolution Olympus electronic viewfinder. The OM-1 features a much improved 5.76M Dot OLED electronic viewfinder. Available in Angled 45º (PN 32205 or 32213) and Straight 180º (PN 32204 or 32211) formats, both viewfinders have external dioptric adjustments for dialing in perfect correction matched to the photographer’s eyesight. When used with the NA-OM1, the Full Frame Angle Viewfinder 32°/ 1:1 (32213) or the Full Frame Straight Viewfinder 32°/ 1:1 (32211) requires the 32215 Viewfinder Collar Adaptor.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is available with NA-OM1 as standard equipment. Combined with an optional M14 Vacuum Valve II (PN 25624), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

What's In The Box

• NA-OM1 Housing with two handles and mount balls
• 90136 Spare main o-ring, o-ring remover and lubricant
• 2x plugs for optical fiber cable mount
• Panasonic CR-2032 battery (for moisture alarm and leak detector)
• Set of Allen Keys
• Manual instruction card

Padded housing bag and shoulder strap

PDF Instruction Manual Download

Recommended Accessories

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 32204 Nauticam 180˚ straight viewfinder for MIL housings
• 32205 Nauticam 45˚ viewfinder for MIL housing
• 26306 Mini Flash Trigger for Olympus (Compatible with NA-EM5II/EM1)
• 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1*
• 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1*
• 32215 Viewfinder Collar Adaptor for 32211/2/3/4 to use with MIL Housings
• 26216 Universal Optical Fiber Cable
• 25221 M10 strobe mounting ball for housing
• *32215 is required for use with NA-OM1

* Updates to these parts are currently being produced. If you have one of the incompatible parts, please contact us for upgrade information.

HDMI Output Accessories

For HDMI 2.0

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/OM1/R5C to use with Ninja V housing)

Monitor housing

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

For HDMI 1.4

• 25081 M24-M16 Step Down Adaptor
• 25028 Socket extension for 25032 HDMI bulkhead with M16 thread
• 25032 Custom HDMI bulkhead to use with socket extension
• 25076 HDMI (D-D) Cable in 200mm Length(for internal connection from HDMI bulkhead to camera)

Monitor housing

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with

HDMI 1.4 input

• 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor (With HDMI 1.4 input)
