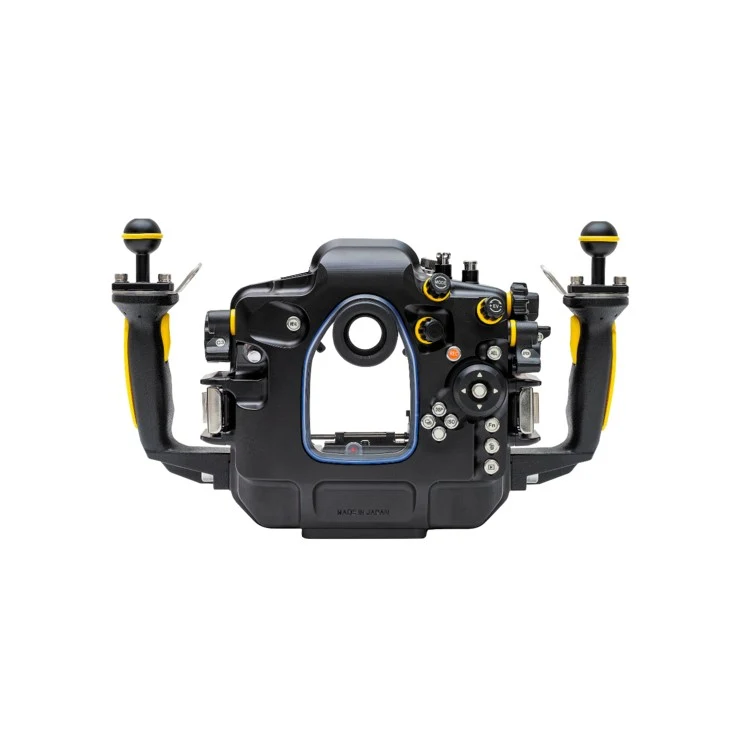

Underwater housing Sea&Sea to Sony a7R IV

Fully loaded Sea&Sea underwater housing for Sony a7R IV

The housing
Revised ergonomic design, improved safety features and eye-catching exterior. The new MDX series housings are now upgraded with more standard features to ensure better handling and greater protection for your camera. The camera can be mounted in the housing with its LCD monitor extended from the camera to reduce the distance between the rear window and monitor to increase visibility.

The camera can be removed from the housing easily even if a lens with large diameter such as the SEL1635GM is mounted on the camera without removing port from the housing enabling you to replace battery and lens with ease.

The Leak Alarm Unit, which was previously available as an option, is now included as standard equipment. It is effective not only for the early detection of underwater flooding accidents but also for the protection of equipment by checking its waterproof performance before entering the water. CR2032 lithium battery included.

Strobe sync options

Option 1. This housing is prepared for use with manual optical trigger . For those who do not need TTL photography but want rappid fire, the fiber optical cable connection enables manual fire of an optical controlled strobe.
Option 2. Optical TTL converter (#50151). Compatible with SEA&SEA “Optical YS Converter S1” which converts the strobe light emission signal of the camera to LED light and synchronizes with Sea&Sea YS strobes. It is a high-performance converter that does not just emit simple light-emitting signals, but also performs TTL auto light control.
Option 3. Electrical connection. Strobe connector/N (#50147) & Sync Cord 2-pin bulkhead contact (#50122). Let's you connect YS strobes electrically with an optional sync cord.

Lens port is required

A compatible lens port is required for underwater use (sold separately). Choose the correct port components for the lens you will be shooting.

Sea&Sea Port charts

Full range of standard equipment & features

Grip Plus is made of silicone material.
Robust yet secure fit to hold the housing in place.
Lighting can be deployed as desired from the SA8 fixed ball base.
Pre-equipped with lanyard hooks for convenient transportation.
Functional Limitations and Enhancement Customization Kit
The Port Lock prevents the port from turning or loosening and the Port Lock lever is specifically located to avoid being unlocked accidentally.
The housing is equipped with a lens-lock release button which makes it possible to change lenses easily, without opening the housing.
Pulling out the Focus/Zoom Dial gives sufficient room inside the housing to easily accommodate larger diameter lenses.
All controls have luminescence stickers that glow in a dark environment.
Equipped with the Optical Viewfinder 0.5x as standard. Other optional viewfinders such as the VF180 1.2x, VF45 1.2x, and Optical Viewfinder 0.66x, 0.8x can be used.

Specifications

Body corrosion-resistant aluminum alloy (machined)
Grip corrosion-resistant die-cast aluminum alloy
Depth rating 100m
Dimensions 330 x 169 x 137 mm
Weight Approx. 2,900g housing only
